Mains power supply / 24 VDC

LTE Cat 4 Industrial Gateway, Digital I/O, USB

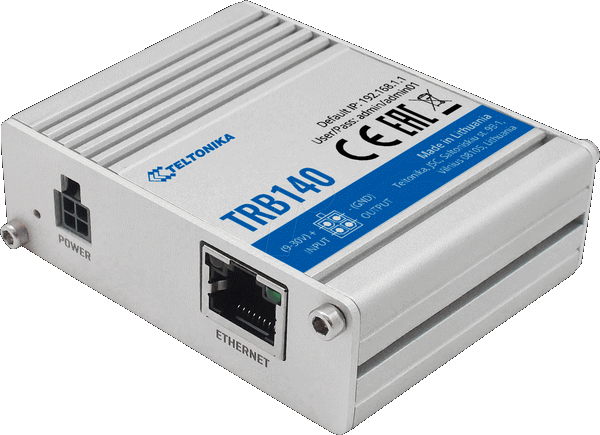

The TRB140 LTE Cat 4 Industrial Gateway is equipped with a single Ethernet port, digital I/O, and a micro USB port. The compact design of the TRB140 makes this gateway perfect for an application where a single device needs to be assured of a reliable internet connection. The TRB140 is designed for use in industrial applications and therefore offers a wide range of software features such as SMS control, firewall, OpenVPN, IPsec, RMS and FOTA support.

• LTE (Cat4) / 3G / 2G
• SIM slot: Mini-SIM (2FF)
• Antenna connector: 1 x SMA for LTE
• Ethernet: 1 x 10/100/1000 Mbps
• Input/Output: 2 x digital/analog inputs/outputs (configurable)
• Processor: ARM Cortex-A7 1.2 GHz
• RAM: 128 MByte (50 MByte available to the user)
• Flash: 512 MByte (70 MByte available to the user)
• Input voltage: 9 - 30 VDC
• Power connector: 4-pin industrial DC outlet
• Configuration port: Virtual network adapter via micro-USB connector
• LED indicators: Power, signal, network, and data status LEDs.
• Operating Temperature: -40°C to 75°C
• Dimensions: 60 mm x 70 mm x 18 mm
• Weight: 155.8 g

Scope of delivery:

• 1x Power Supply
• 1x LTE Antenna
• 1x Micro-USB Cable
• 1x Hex Wrench
• 1x Connection Cable
• 1x Manual
• 1x RMS Flyer

Installation Guide
