RevPI Connect
Advanced IIoT & automation
RevPI Connect SE, Connect S, Connect 4 and Connect 5 products.
Wide range of variants
Perfect for high-performance applications
Connects IT and OT systems (machines & systems)
Expandable with I/Os and gateways
Technical Details
|

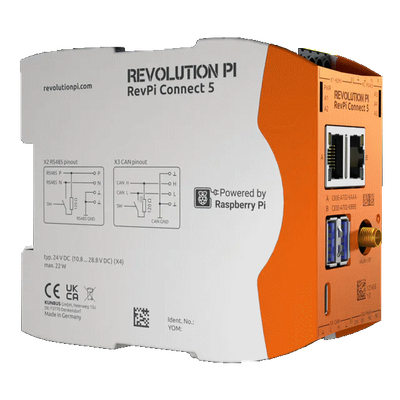

RevPi Connect 5 |

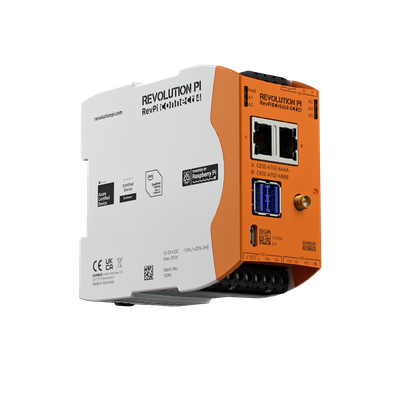

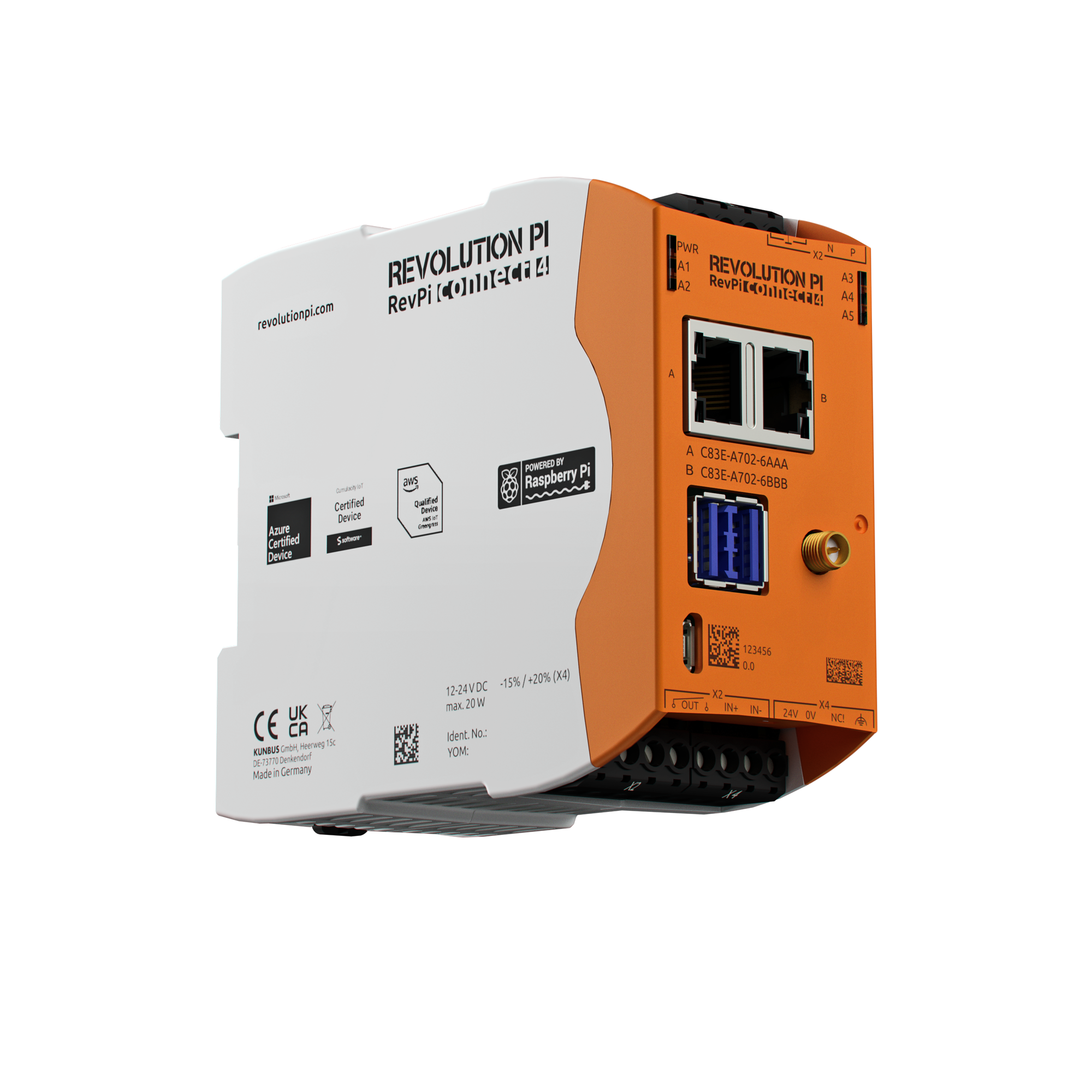

RevPi Connect 4 |

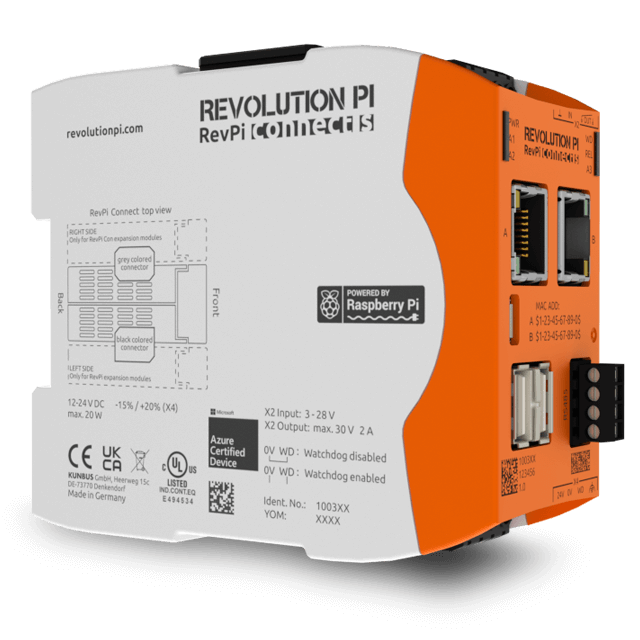

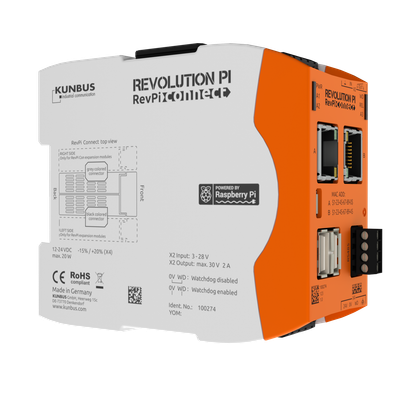

RevPi Connect S/SE |
|
|---|---|---|---|
| Performance |  |
 |
 |
| Raspberry Pi Compute Module |
CM5 |
CM4 |
CM4S |
| Processor |
Broadcom BCM2712 | Quad core Cortex-A76 | 2.4 GHz |
Broadcom BCM2711 | Quad core Cortex-A72 | 1.5 GHz |
Broadcom BCM2711 | Quad core Cortex-A72 | 1.5 GHz |
| RAM |
up to 8 GB LPDDR4X |
up to 8 GB LPDDR4 |
1 GB LPDDR4 |
| eMMC Storage |
up to 32 GB |
up to 32 GB |
up to 32 GB |
| Interfaces | |||
| RJ45 Ethernet |
2 × (1 Gbps) |
2 × (1 Gbps) |
2 × (10/100 Mbps) |
| USB-A |
2 × (USB 3.2 Gen 1) |
2 × (USB 3.2 Gen 1) |
2 x (USB 2.0) |
| Micro HDMI 2.0a (4K) |
✔ |
✔ |
✔ |
| WLAN and BT |
✔ (optional) |
✔ (optional) |
✔ (optional) |
| RS485 |
✔ (optional) (4-pin screw connector) |
✔ (4-pin screw connector) |
✔ (4-pin screw connector) |
| CAN FD |
✔ (up to 2 ×) (4-pin screw connector) |
❌ |
❌ |
| Integrated I/Os | ❌ |
✔ Screw connector (4-pin) for relay contact or signal input |
✔ Screw connector (4-pin) for relay contact or signal input |
| Compatibility with RevPi Expansion Modules | |||
| RevPi I/O Modules | ✔ | ✔ | ✔ |
| RevPi Gateways |
✔ |
❌ |
✔ (S variant only) |
| PiBridge |
✔ (2 x) |
✔ (2 x) |
✔ (1 x) |
| ConBridge |
❌ |
❌ |
✔ (1 x) |
| Additional Features | |||
| Trusted Platform Module (TPM) |
✔ |
✔ |
❌ |
| Optical Display |
6 × Multi-Color LED (5 freely programmable) |
6 × Multi-Color LED (5 freely programmable) |
6 × Bi-Color LED (5 freely programmable) |
| RTC Buffer |
CR2032 Lithium battery (approx. 10 years) |
CR2032 Lithium battery (approx. 10 years) |
Double-layer capacitor (min. 24 h) |
| Datasheets |  |
 |
 |
| Order |  |
 |
 |
from 377,00 € excluding Tax
