Mains power supply / 24 VDC

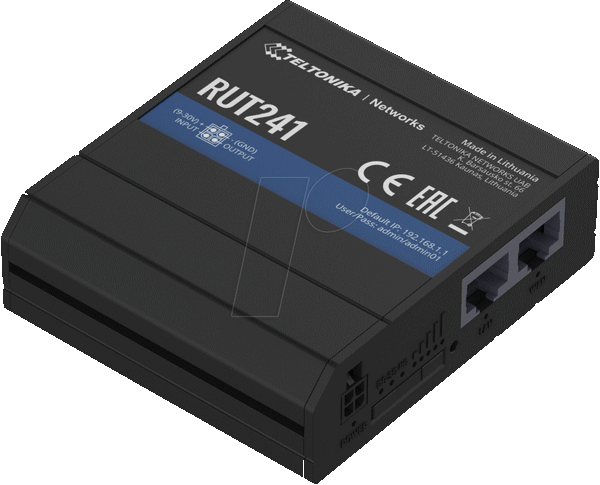

RUT241 Industrial Cellular Router

The RUT241 is the modified version of the proven successful RUT240 model, which has inherited its best features, including industrial design, compact size, multiple connection interfaces, and RMS compatibility.

• 4G/LTE (Cat 4), 3G, 2G
• 2.4 GHz WLAN
• 2 x RJ45 Fast Ethernet 10/100 (1 x WAN/LAN, 1 x LAN)
• WAN failover
• Digital input/output for remote monitoring and control
• Compatible RMS Teltonika

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router ensures uninterrupted connection continuity with automatic failover backup.

Digital inputs and outputs, combined with advanced RutOS software, enable automation scenarios for solutions.

Input/Output

• 1 x digital input, 0-6 V are recognized as low logic level, 8-30 V as high logic level
• 1 x digital open-collector output, max. output 30 V, 300 mA

Scope of delivery:

• 1 x RUT241 router
• 1 x 9W Power Supply
• 2 x LTE antennas (SMA plug)
• 1 x Wi-Fi antenna (RP-SMA plug)
• 1 x Ethernet cable (1.5 m)
• 1 x SIM Adapter Kit
• 1 x QSG (Quick Start Guide)

Installation Guide
