PROFINET permanent network diagnostic and analysis tools.

The PROFINET-INspektor® NT is the successor to the PROFINET-INspektor® and implements new functionalities in addition to those already known.

PROFINET-INspektor® NT is an important diagnostic tool for the certification, commissioning and inspection of newly installed PROFINET networks. In accordance with predefined trigger functions, events are recorded in PROFINET-INspektor® and summarized and stored by PROFINET equipment. Subsequently, the INspektor® detects quality values such as network load, data rate, refresh rate, telegram interrupts and telegram jitter, which reflect the current state of communication quality. These parameters serve as commissioning and inspection criteria for new systems, but also as important information for maintenance and (remote) service.

• Detects new and unknown devices in the network
• Records unauthorized programming or controller manipulation
• Identifies even the smallest peak loads in accurate, millisecond network load resolution
• Recognizes telegram manipulation based on increased jitter

New features NT version:

• Touchscreen that directly shows errors
• Jitter statistics for all devices
• Alarms when unknown devices appear
• Acceptance report mode for a quick overview of the network
• Ability to perform active or passive network diagnostics
• Uninterrupted monitoring, even at high net load
• Comprehensive acceptance report with all relevant event information
• Synchronization via a time server

Thanks to the integrated web server in INspektor®, the network status can be displayed without any additional software on a PC with an Internet browser. Via potential-free contact, a visual alert can be set.

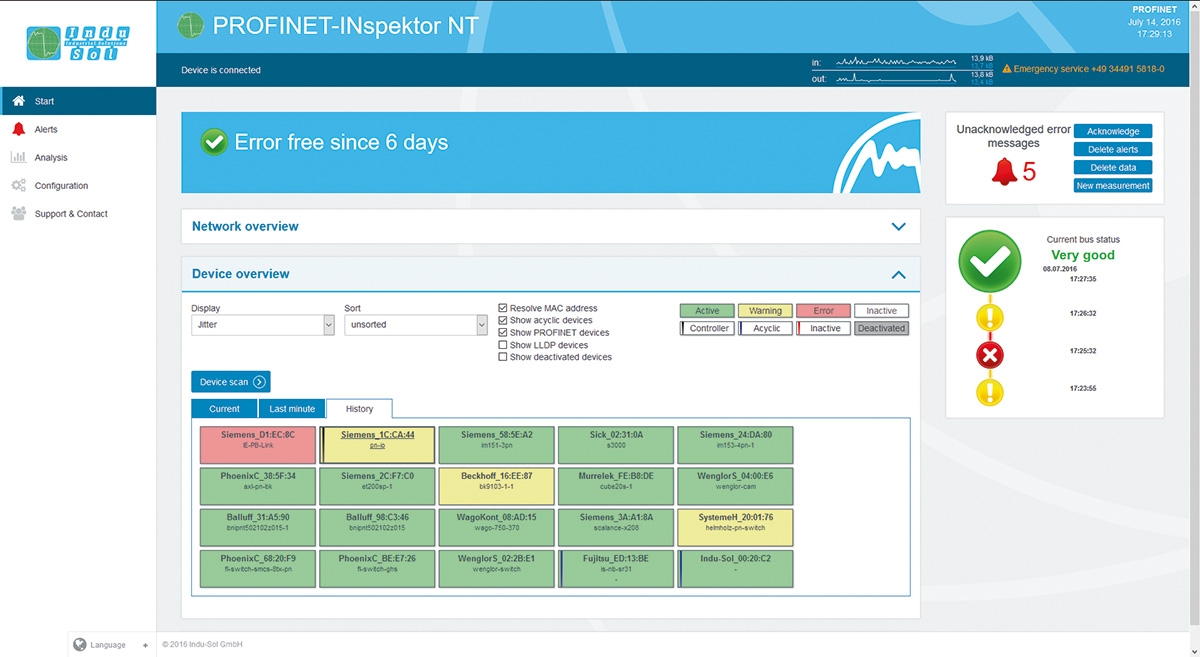

Overview of network equipments

You can clearly see which device is most frequently affected by the events that have occurred. This provides you with important information for troubleshooting.

---

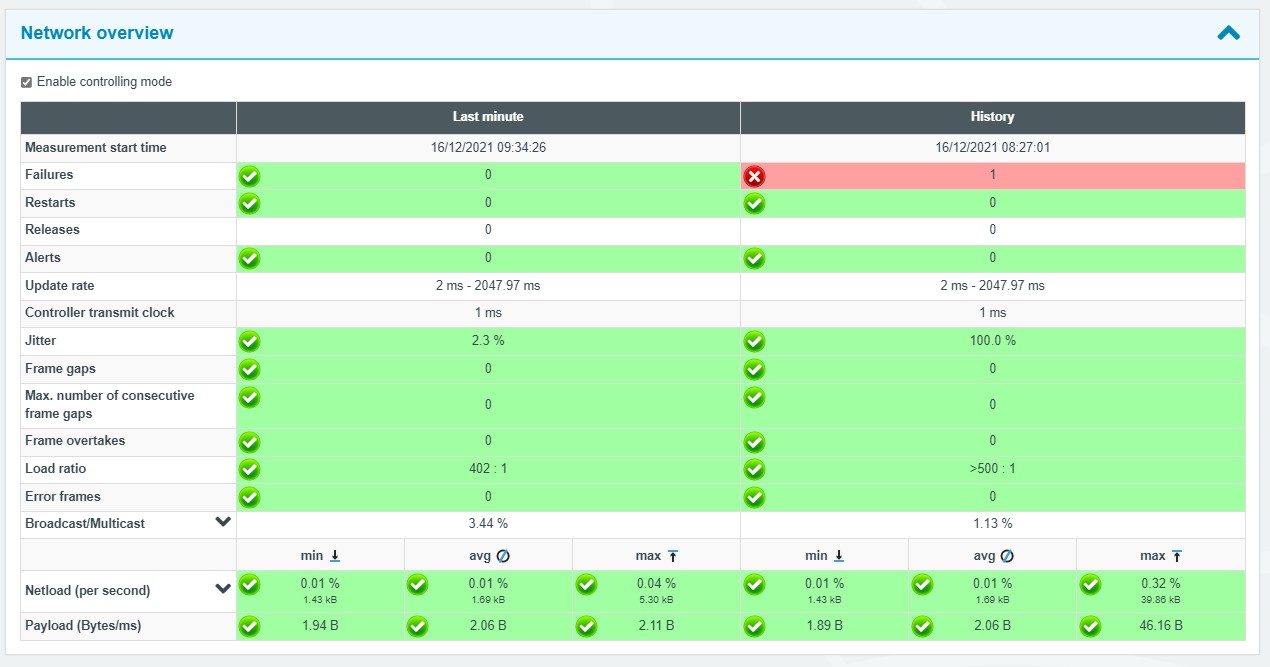

States and chronology

---

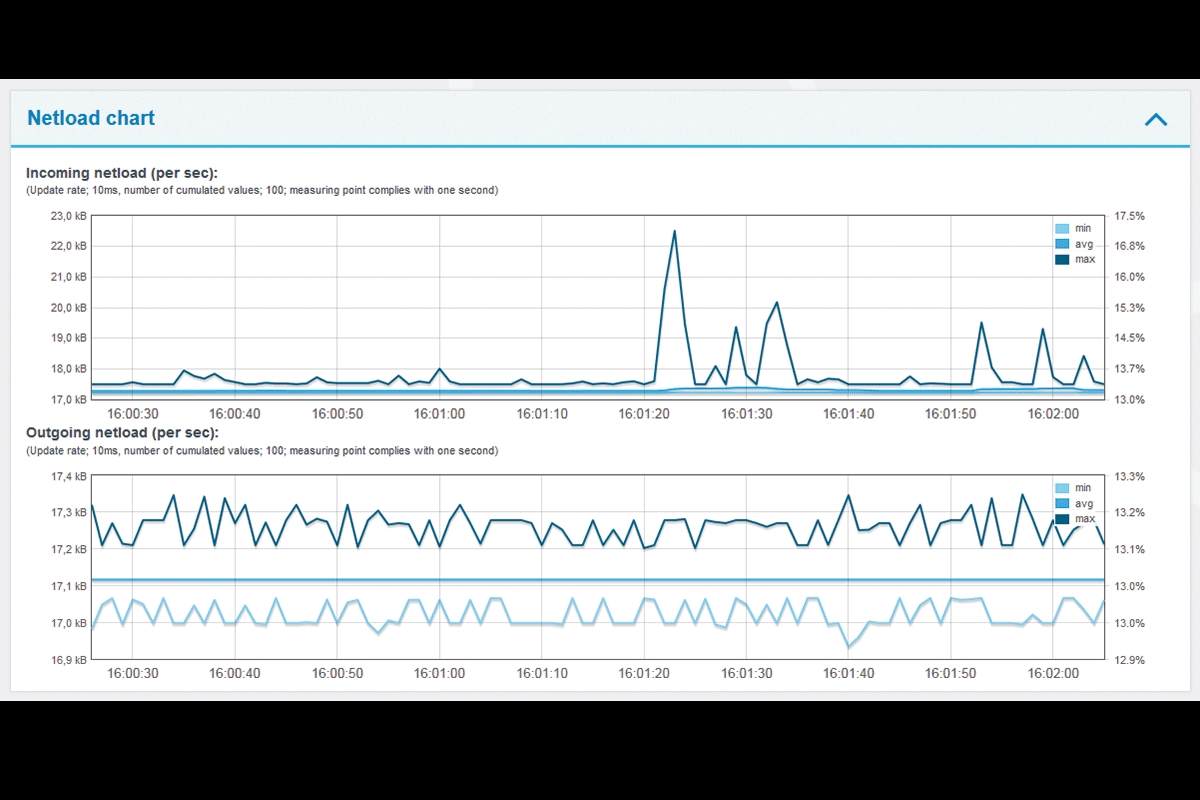

Network load
