Intelligent PROFINET iPNMA measurement point

iPNA

Intelligent measurement point for PROFINET networks

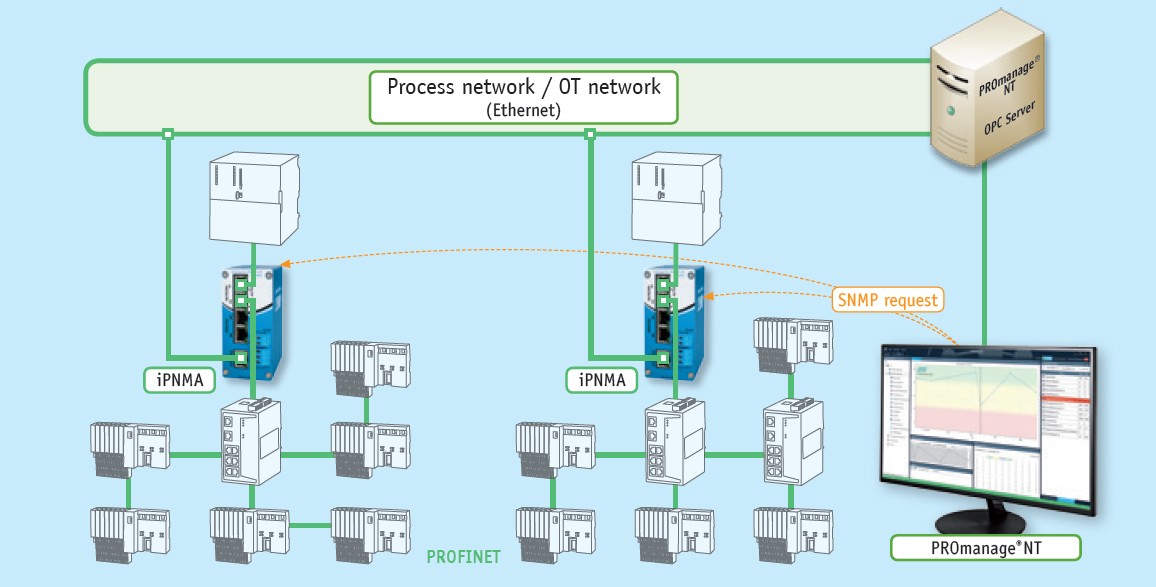

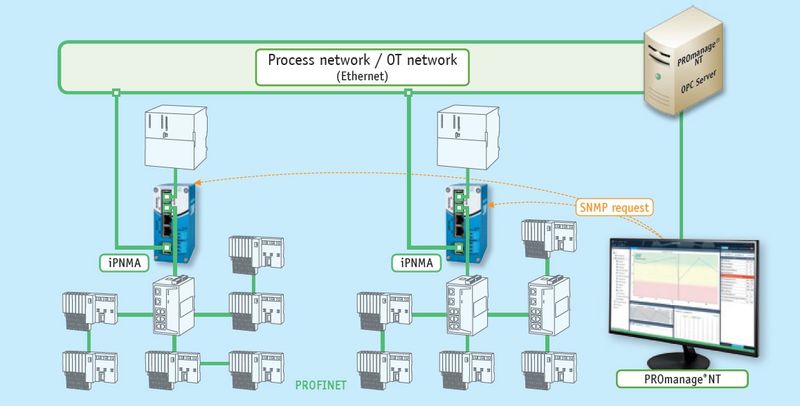

The intelligent PROFINET iPNMA test access point combines the functions of a PROFINET measurement point with a simple PROFINET network analysis. The iPNMA monitors up to 256 participants and determines important PROFINET quality values. The recorded data is queried using the PROmanage® NT software and processed for evaluation in a comprehensible manner. A scan tool (e.g. PROFINET-INspektor® NT or a laptop) can be reacted to both jacks for further network analysis or troubleshooting.

All-In-One:
• Telegram jitter
• Telegram discrepancies
• Telegram overruns
• Netload
• Update rate
• Device Diagnostics
• Device failures/reboots
• Error telegrams.

• Monitoring of all important PROFINET quality values
• Measurement point without reaction
• Compact design
• In the event of a power failure, PROFINET communication remains intact
• Power additional analytical tools via the UOUT connector (24 V DC)
