Switch Industrial Ethernet 16 ports
SKU 114110511
678,00 €
Prix unitaire: Unit price excluding tax
In stock: 5 available
1
Save this product for later
Switch Industrial Ethernet 16 ports
Product Details
Marque: Indu-Sol
VAT: VAT not included
Estimated delivery time: 3 to 5 working days upon receipt of payment.
Manufacturer's warranty: Manufacturer's warranty

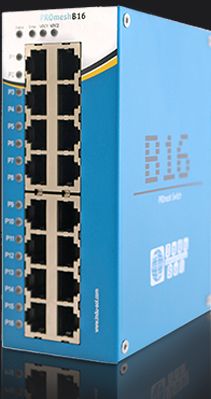

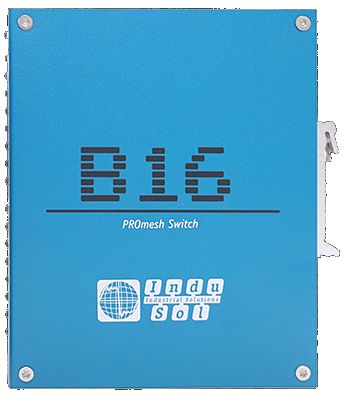

PROmesh B16: The Reliable Managed Switch for Industrial Ethernet Networks
With 16 RJ45 ports, 13.4 Gbit/s backplane capacity and application support for PROFINET and EtherNet / IP, this switch offers a powerful and versatile networking solution.
 |
Product highlights
|
The PROmesh B16 is an Ethernet switch designed for use in industrial networks. It has 16 RJ45 ports that enable comprehensive connectivity for various applications. The backplane capacity is 13.4 Gbps and the switch offers a throughput of 3.7 Mpps. By providing E-Plan Macro, GSDML (PROFINET) and EDS (EtherNet/IP), the switch can be easily integrated into existing industrial network systems.
The design of the switch is robust to ensure reliability under industrial operating conditions. Installation and operation are simplified by status LED indicators. Features such as Quality of Service (QoS) are integrated to prioritize the forwarding of important data in the network and thus promote network quality.
Functions:
- Robust design for long-lasting reliability in industrial environments
- Quality of Service (QoS) prioritization delivers important data to the right place at the right time
- Simple installation and intuitive status LED indicators simplify commissioning
| Ports | 16 x 100 Mbit/s RJ45 |
| PROFINET Standard | CC-B according to V2.4 |
| Monitoring | 24 V, Temperature, Port Statistics, Network Load |
| Netload Class | III |
| Redundancy | MRP, RSTP |
| Protection Rating | IP 20 |
| Dimensions (H x W x D in mm) | 138 x 53 x 110 |
| Firewall | x |
| Routing | x |
| Mounting Type | DIN rail |
| Backplane | 13.4 Gbps |
| Throughput | 3.7 Mpps |
| Shared Buffer | 2 Mbit |
| Certifications | CE UK CA UL CSA |
Produit Manual
