Switch Ethernet PROFINET 9 ports

Home/Store/Industrial Ethenet Switch PROmesh

Product Details

Marque: Indu-Sol

VAT: VAT not included

Estimated delivery time: 3 to 5 working days upon receipt of payment.

Manufacturer's warranty: Manufacturer's warranty

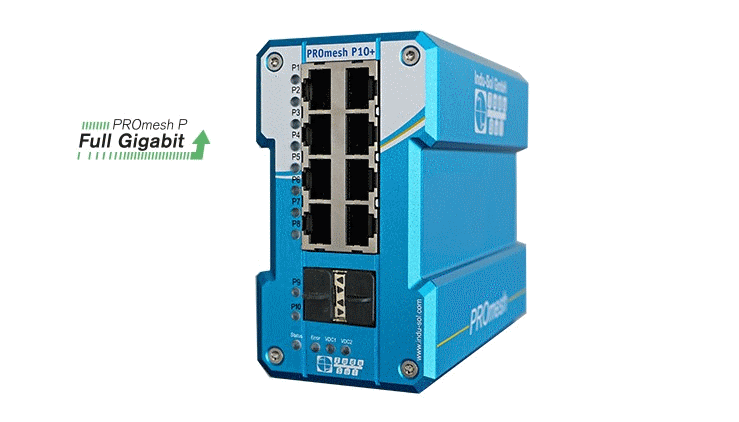

10-ports PROFINET Ethernet switch with built-in diagnostics.

The PROmesh P10+ managed Industrial Ethernet Switch supports data transmissions at speeds of up to 2.5 Gbit/s and is specially designed for use in industrial networks. By integrating EMC and performance monitoring, it enables continuous network monitoring and diagnostics to ensure network stability. Integrated security features such as firewall and NAT routing enable the implementation of various security concepts, e.g. in accordance with IEC 62443. With UL/CSA certification, it meets international safety standards.

The equipment with SFP slots enables flexible use of copper cables or fiber optic cables. The PROFINET v2.4 certification and the extended operating temperature range underline its suitability for industrial applications. The EPLAN macro provided facilitates integration into existing concepts. Installation is simplified by the compact design and the option of top-hat rail mounting.

Functions:

Permanent physical monitoring of data lines thanks to line diagnostics
PROFINET v2.4 certified
EtherNet / IP support (eds file)
8 RJ45 ports and 2 SFP slots for a wide range of networking options
Extended operating temperature range from -40°C to 75°C
Compact design with DIN rail mounting
CE | UKCA and UL/CSA certification

Ports	8 x 1 Gbit/s RJ45 2 x 2.5 GBit/s SFP
PROFINET Standard	CC-B according to V2.4
Monitoring	Cable, EMC, 24 V, Temperature, Light, Port Statistics, Network Load
Netload Class	III
Redundancy	MRP, RSTP, MSTP
Protection Class	IP 20
Dimensions (H x W x D in mm)	110 x 60 x 132
Firewall	✓
Routing	NAT
Mounting Type	DIN rail
Backplane	26 Gbit/s
Throughput	19.3 Mpps
Shared Buffer	2 Mbit
Certifications	UL/CSA CE UK CA

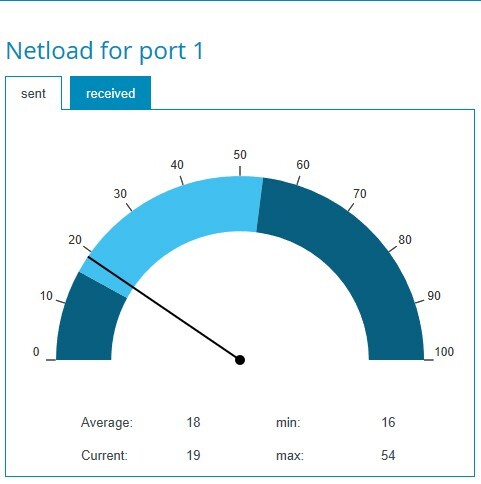

Network Load/Usage

Data traffic can be limited by adjustable thresholds to avoid network load peaks. Data greater than the maximum value is ignored.

In addition to the PROFINET features, you also have other management functions, such as Port Mirroring, SNTP and packet filtering rules for packet prioritization.

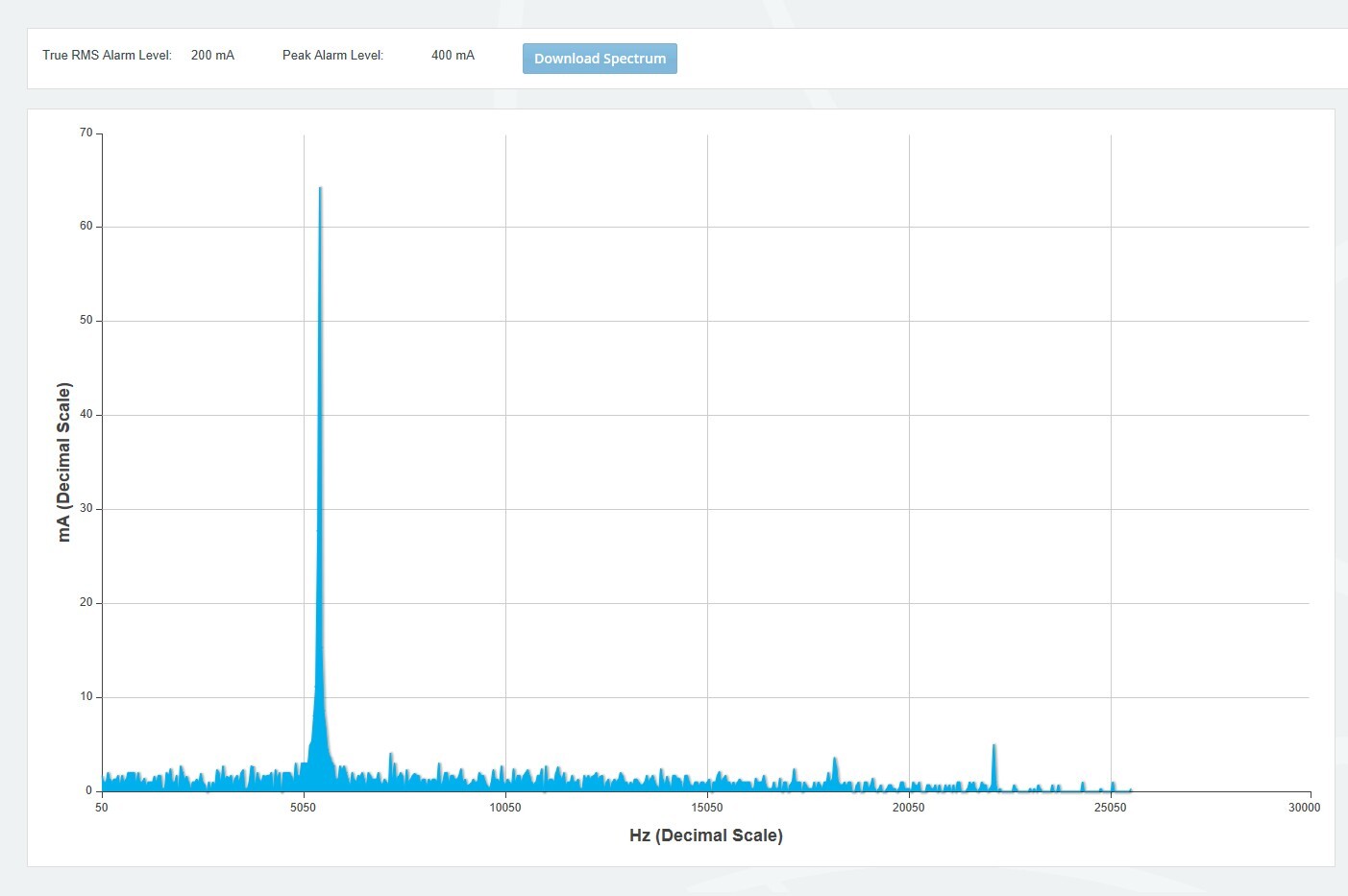

Leakage Current Monitoring

Leakage current monitoring allows the sum of all shielding currents of PROFINET lines to be continuously recorded and evaluated. The corresponding spectrum with the respective frequency components is specified for this in addition to the current value.

Thanks to this integrated function, the PROmesh series also offers fault detection mechanisms or EMC couplings in addition to comprehensive PROFINET diagnostics.
