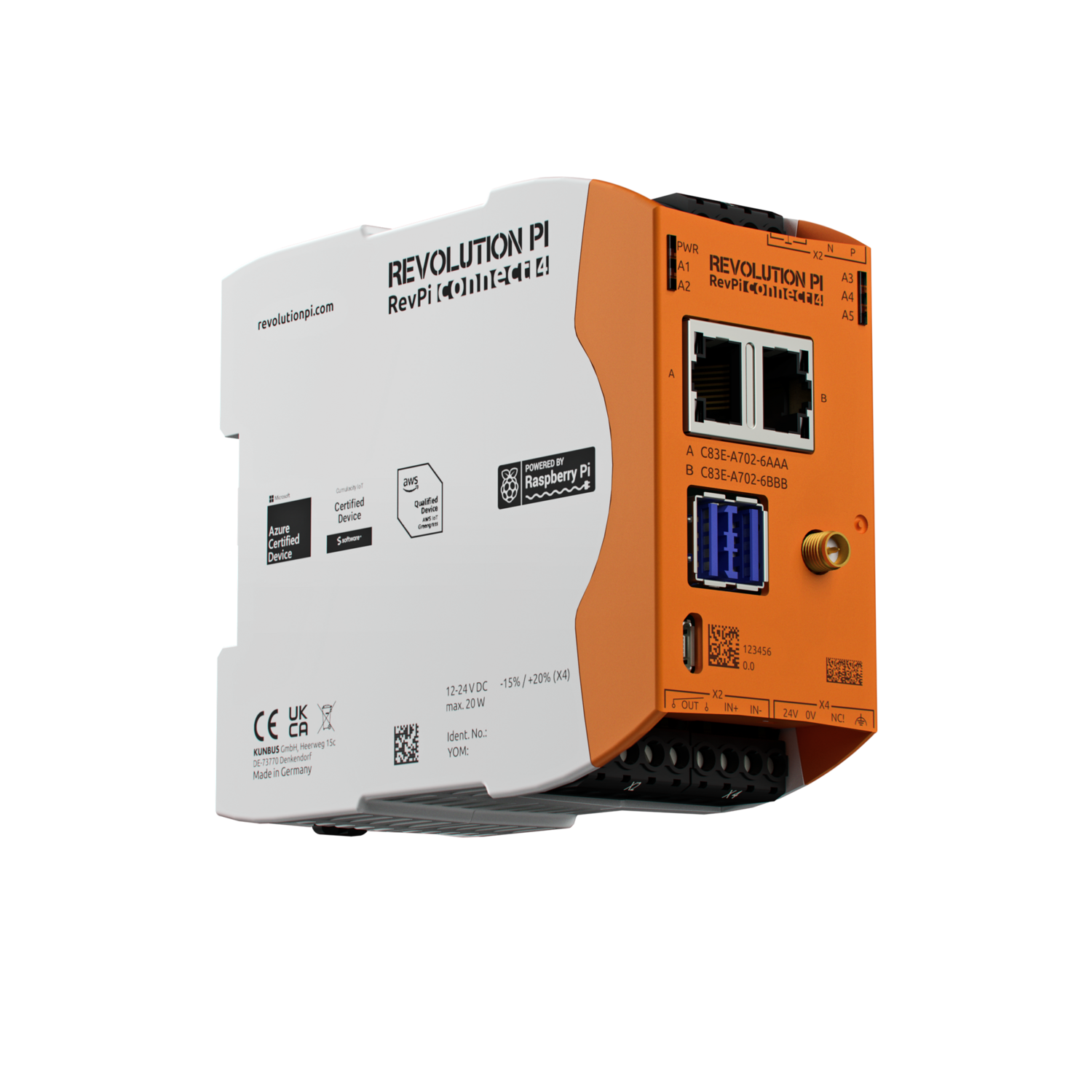

Revolution PI by Kunbus RevPI Connect 4 32Go 4Go WiFi

The RevPi Connect IIoT open source gateway offers users maximum freedom when implementing IIoT projects due to its open platform concept (including full root rights). RevPi Connect 4 is based on the Raspberry Pi CM4 compute module 4 and includes a 1.5 GHz quad-core processor, 4 GB of RAM, and 32 GB of eMMC flash memory. A CR2032 battery-backed real-time clock (RTC) ensures that the device always knows what time it is, even in the event of a power outage. A specially modified Raspbian version with a real-time patch is available as an operating system. Common IIoT protocols like MQTT and OPC UA are supported to transfer machine data directly to the cloud. The RevPI Connect 4 supports I/O modules. The device has WLAN or Bluetooth connectivity. In addition to the integrated antenna of the compute module, an external antenna can be connected via an SMA socket for optimal reception.

Product sheet
