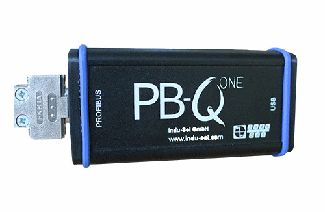

PROFIBUS PB-Qone tester.

PROFIBUS Network Diagnostic/Cabling Tester

Reading and using complicated and incomprehensible tables and diagrams was yesterday! The PROFIBUS PB-Q ONE tester enables modern maintenance: you get precise measurement results in seconds that can be easily evaluated thanks to the graphic display based on the traffic light principle. These and other useful features of the compact multifunction device make it irreplaceable for any service technician who strives to achieve a simple quality diagnosis in the PROFIBUS network.

Avantages
All-In-One

You save your time: The PB-Q ONE provides measurement results within seconds that can be easily evaluated. Self-explanatory handling and simple evaluation with clear report allow use even without much prior knowledge.
You save money: The PB-Q ONE is a very competitive multifunction device that supports you in many PROFIBUS maintenance tasks.
Evaluation of communication quality: The PB-Q ONE is a multifunctional device that reliably evaluates both the physical and communication layers of your PROFIBUS network.
One device for many tasks: With the PB-Q ONE, you have an affordable multifunctional device for commissioning, maintaining, servicing and troubleshooting your PROFIBUS networks.
Simplicity: The PB-Q ONE is simple and intuitive to use. With clear displays, quality diagnostics based on the traffic light principle and many other easy-to-use functions, foreknowledge and regular use are not a prerequisite for using the PB-Q ONE successfully.

FUNCTIONS of PROFIBUS PB-Q ONE

The PB-Q ONE reliably detects and evaluates the status of the physical and logical transmission quality in the network. The hardware is largely non-responsive to the PROFIBUS network by a supplied adapter. With the PROFIBUS PB-Q ONE tester, the transmission levels of slaves in operation can be physically evaluated and displayed by a measuring bar graph that also takes into account the 7Volt drivers of modern PROFIBUS devices. All measurement and test results can be displayed and saved on the PC via supplied software. The software is easy to use. Clear menu navigation allows you to switch between diagnostic and expert mode.

Signal quality

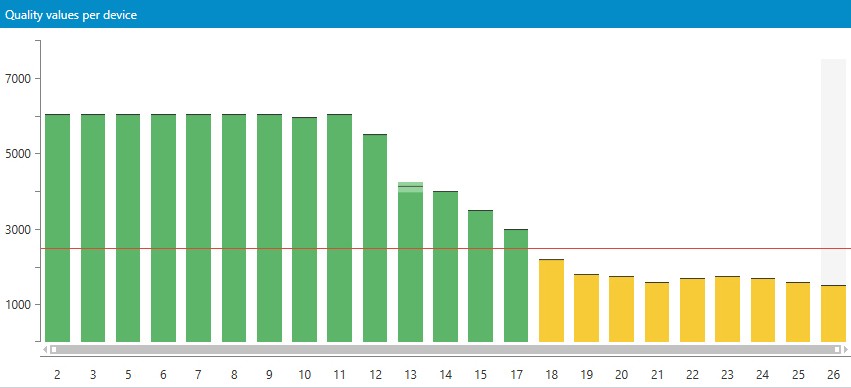

The PROFIBUS tester is able to determine the value of the voltage difference as well as the signal shape during PROFIBUS telegram transmissions. The results are visualized in the form of a bar chart, showing a quality value for each bus device analyzed.

Signal-to-Noise Ratio

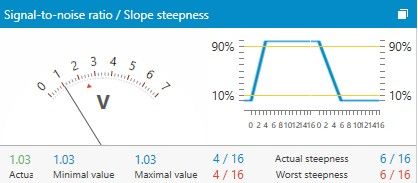

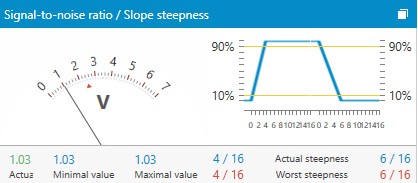

The signal-to-noise ratio indicates the shortest distance between a logical "0" and the logical "1". It shows how much a device's signal is affected by external interference or signal fluctuations. It helps to recognize sporadic physical errors.

Device Details

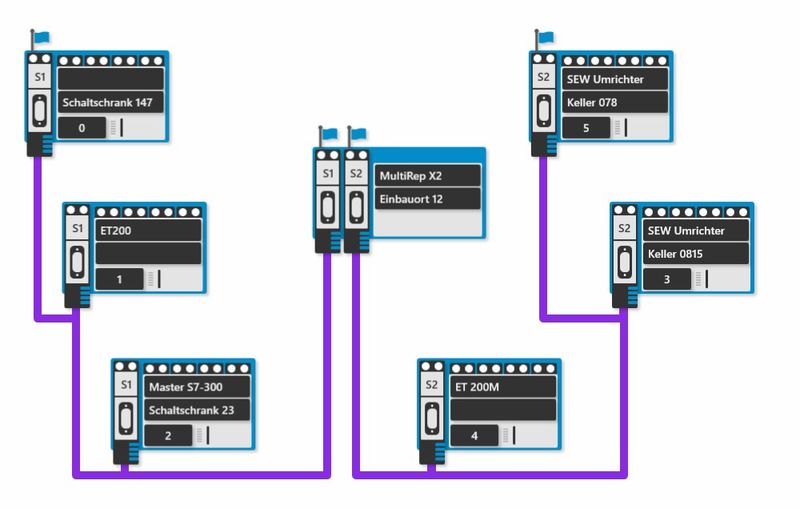

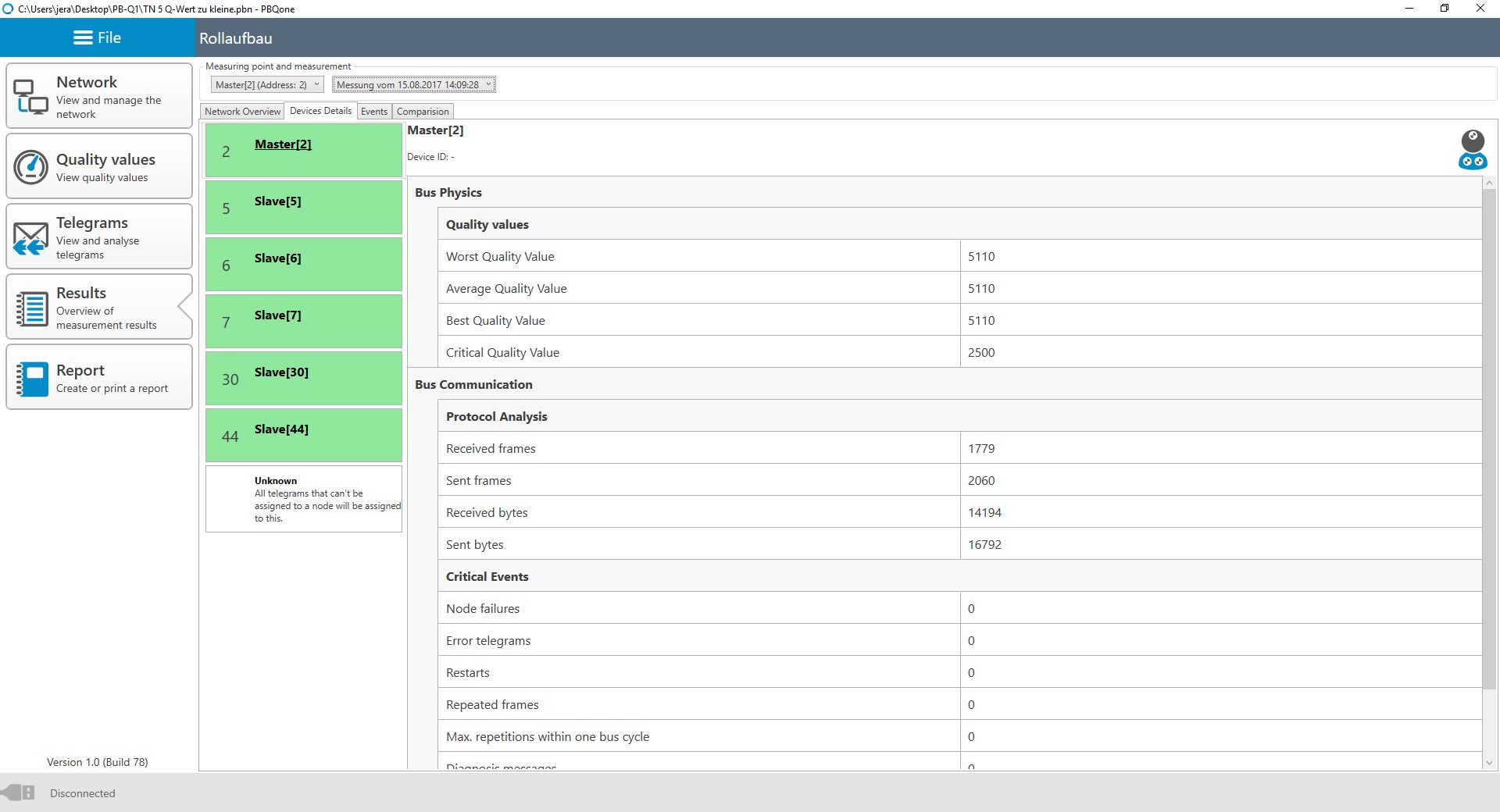

All bus devices are presented in a tree diagram, including the address, module name, and device symbol. Color highlighting (green, yellow, red) provides a quick assessment of the status of each device

Telegram mode

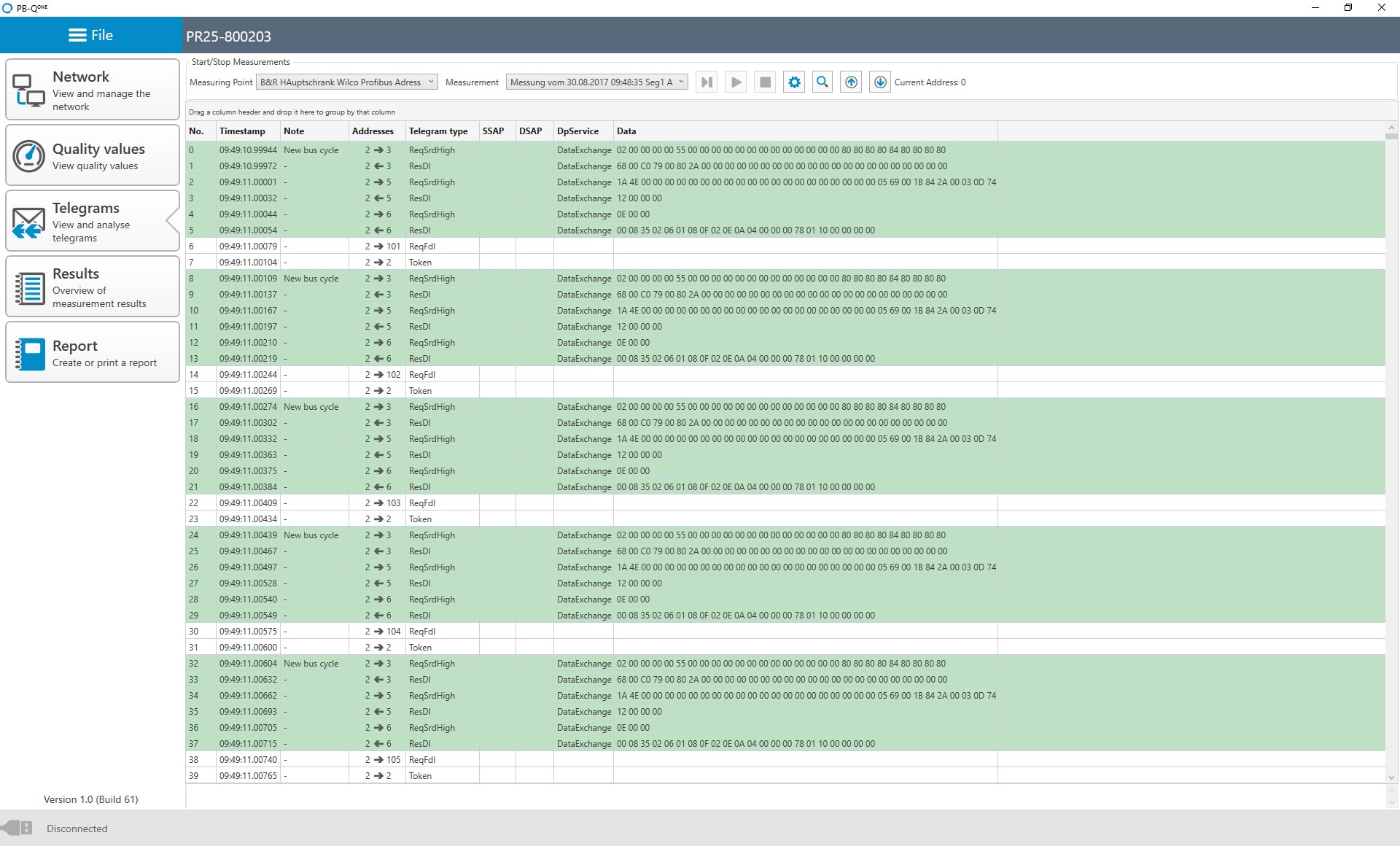

Telegram mode expands the range of analyses. A large number of filters and triggers are available to analyze data traffic in terms of events but also certain data content.

DP Master Simulator Mode

The built-in master simulator is designed to determine the topology of the actual wired bus and analyze the signal quality of the connected bus devices. The master simulator is used in offline mode without an automaton.
