Revolution PI
Quantity | Price per item | Discount |
5 items | 405,00 € | 2% off |
10 items | 395,00 € | 4% off |
20 items | 385,00 € | 7% off |
50 items | 374,00 € | 9% off |

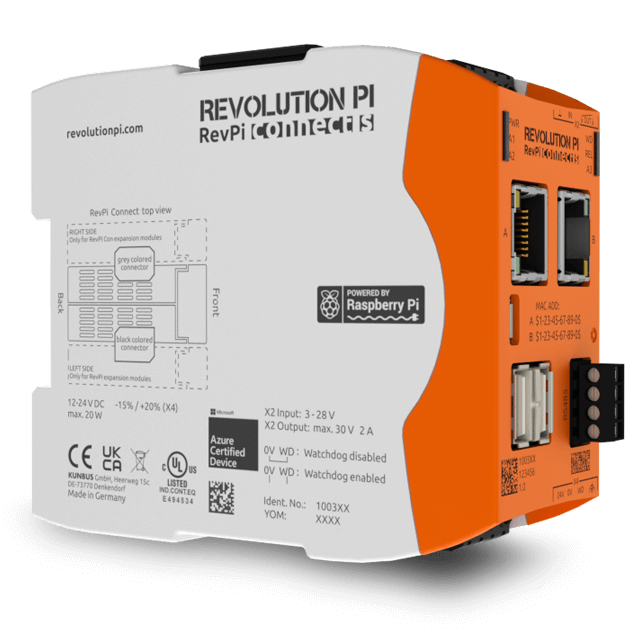

The RevPi Connect IIoT open source gateway offers users maximum freedom when implementing IIoT projects due to its open platform concept (including full root rights). RevPi Connect is based on the Raspberry Pi CM4S compute module and includes a 1.5 GHz quad-core processor, 1 GB of RAM, and 32 GB of eMMC flash memory. A real-time clock (RTC) with 24-hour buffering ensures that the device always knows what time it is, even in the event of a power outage. A specially modified Raspbian version with a real-time patch is available as an operating system. Common IIoT protocols like MQTT and OPC UA are supported to transfer machine data directly to the cloud. The RevPI Connect S supports I/O, CON and Gateway modules
Interfaces on RevPi Connect S |
---|
2 x RJ45 Ethernet sockets |
2 x USB 2.0 sockets |
1 x Micro HDMI socket V2.0a (4K) |
1 x Micro USB 2.0 socket |
1 x RS485 screw terminal (4 pole) |
1 x 24 V input for shutdown signals of a UPS |
1 x freely programmable relay switching contact |
1 x PiBridge (for RevPi expansion modules) |
1 x ConBridge (for RevPi Con expansion modules) |
Product sheet
